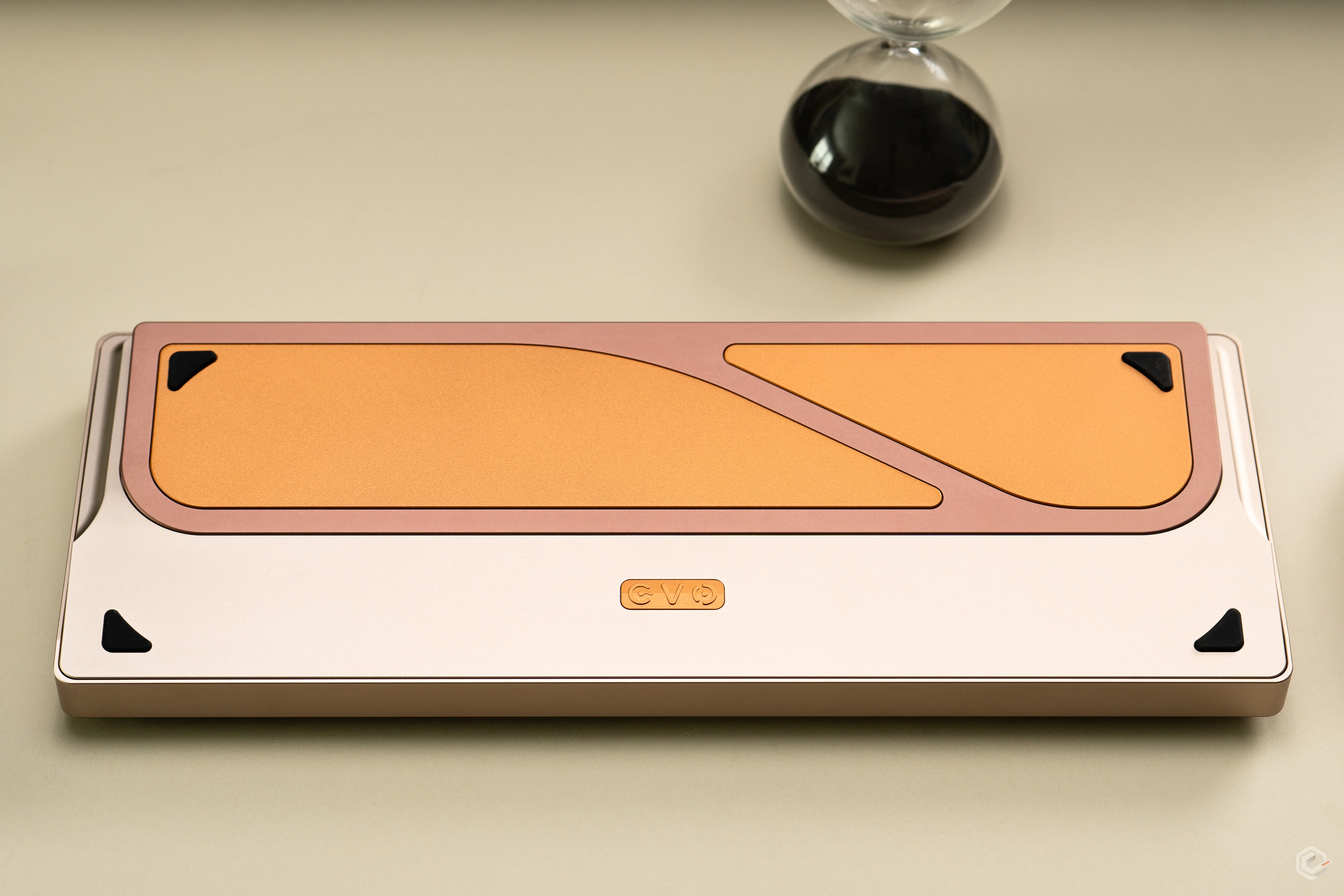

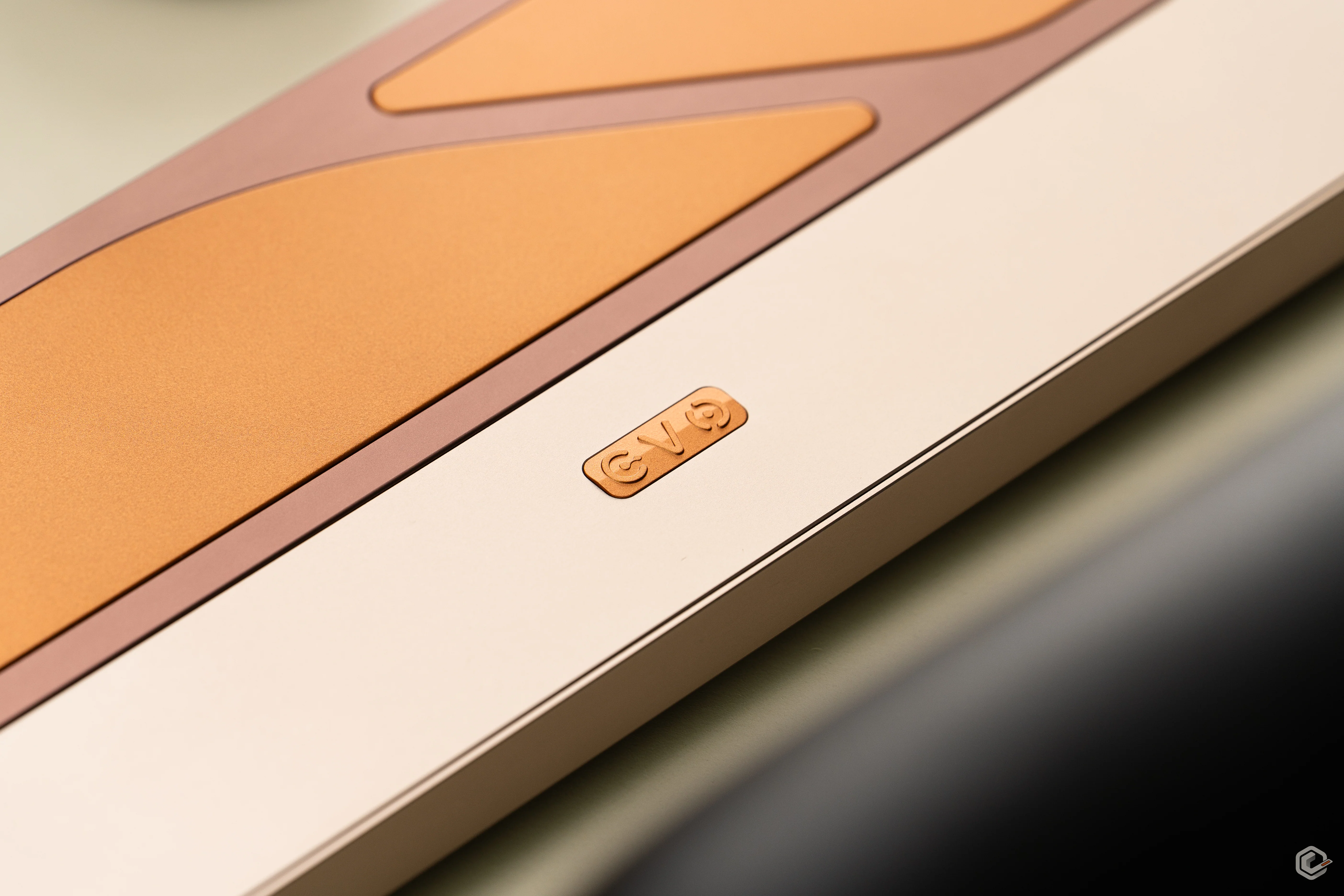

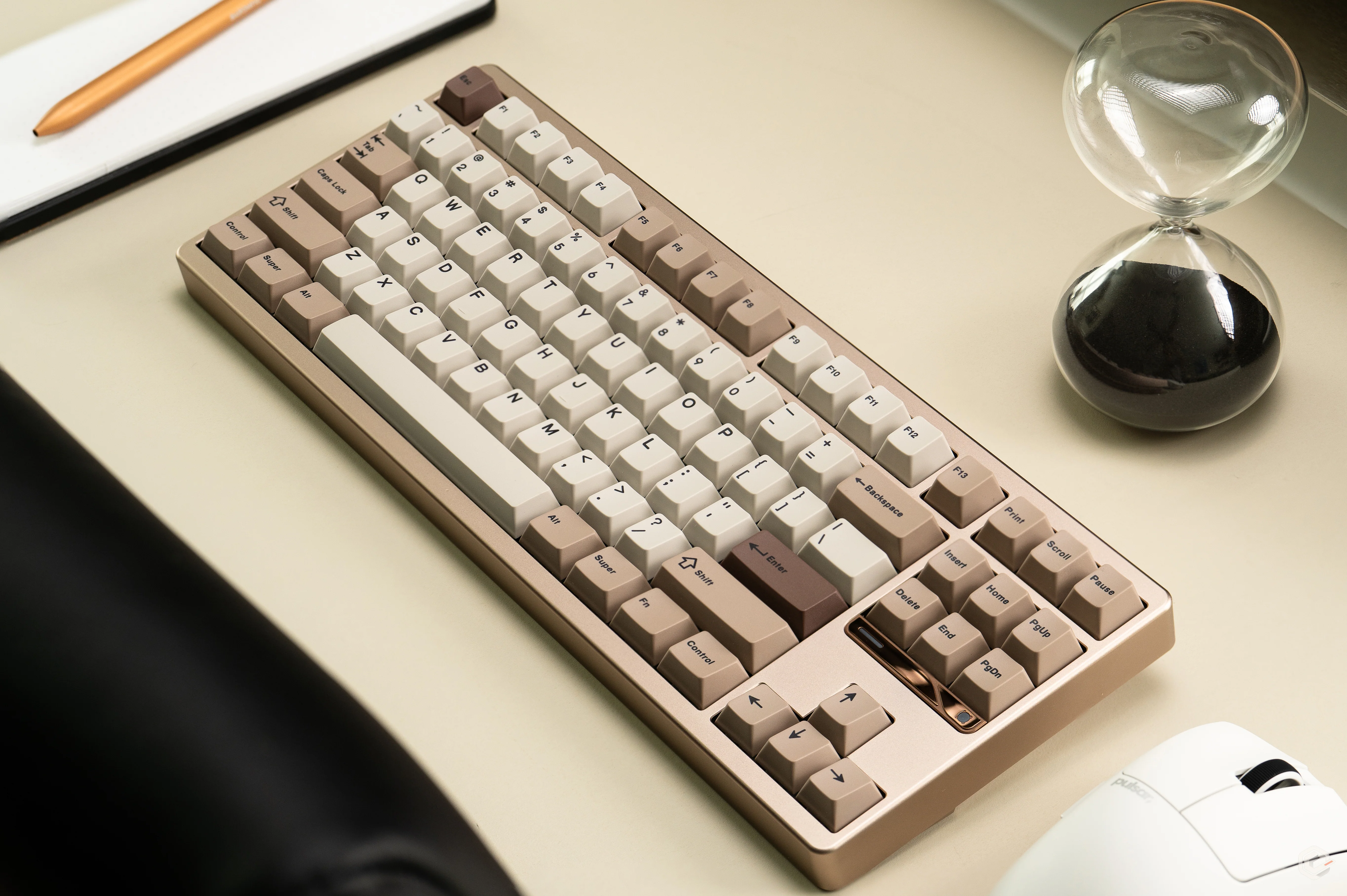

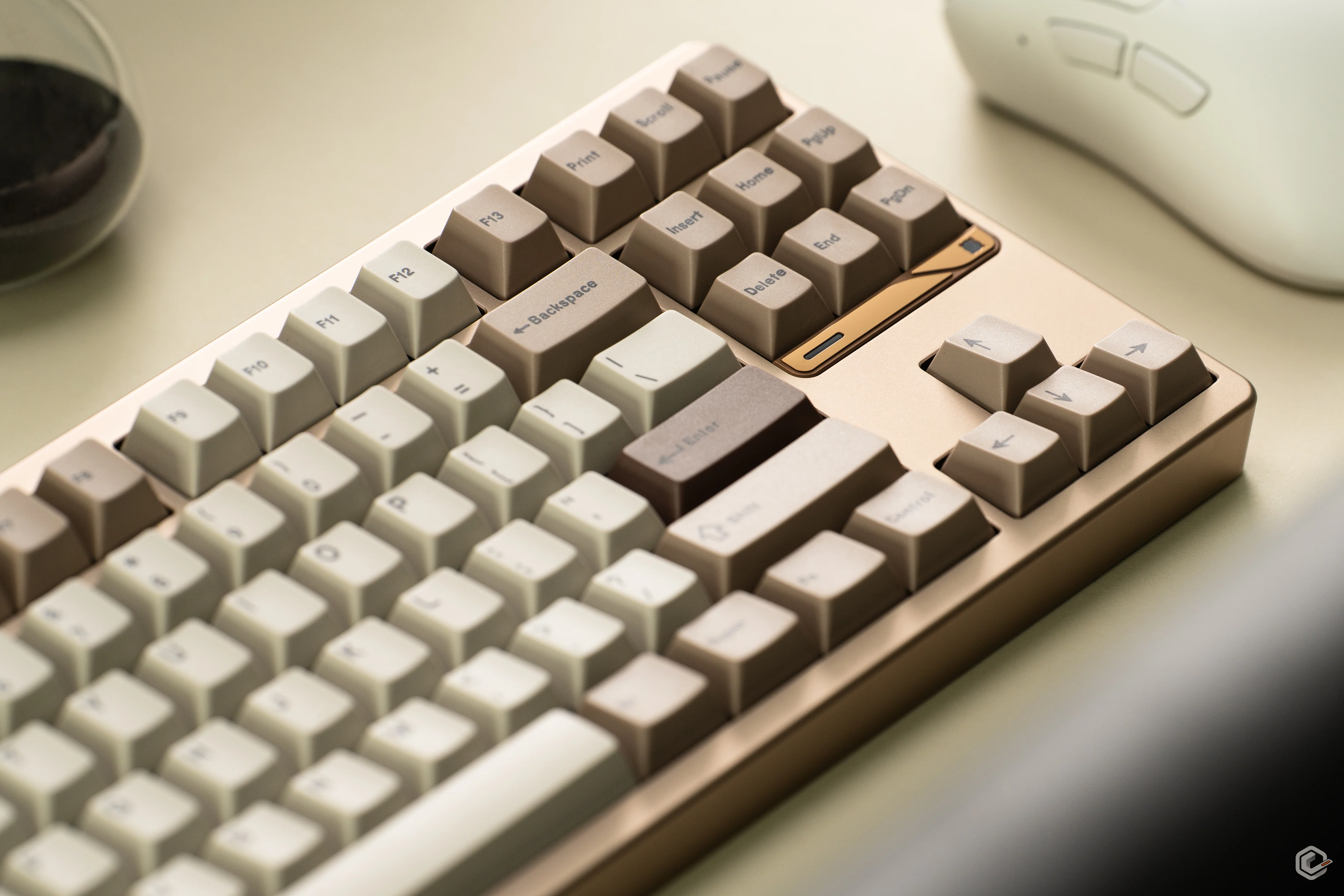

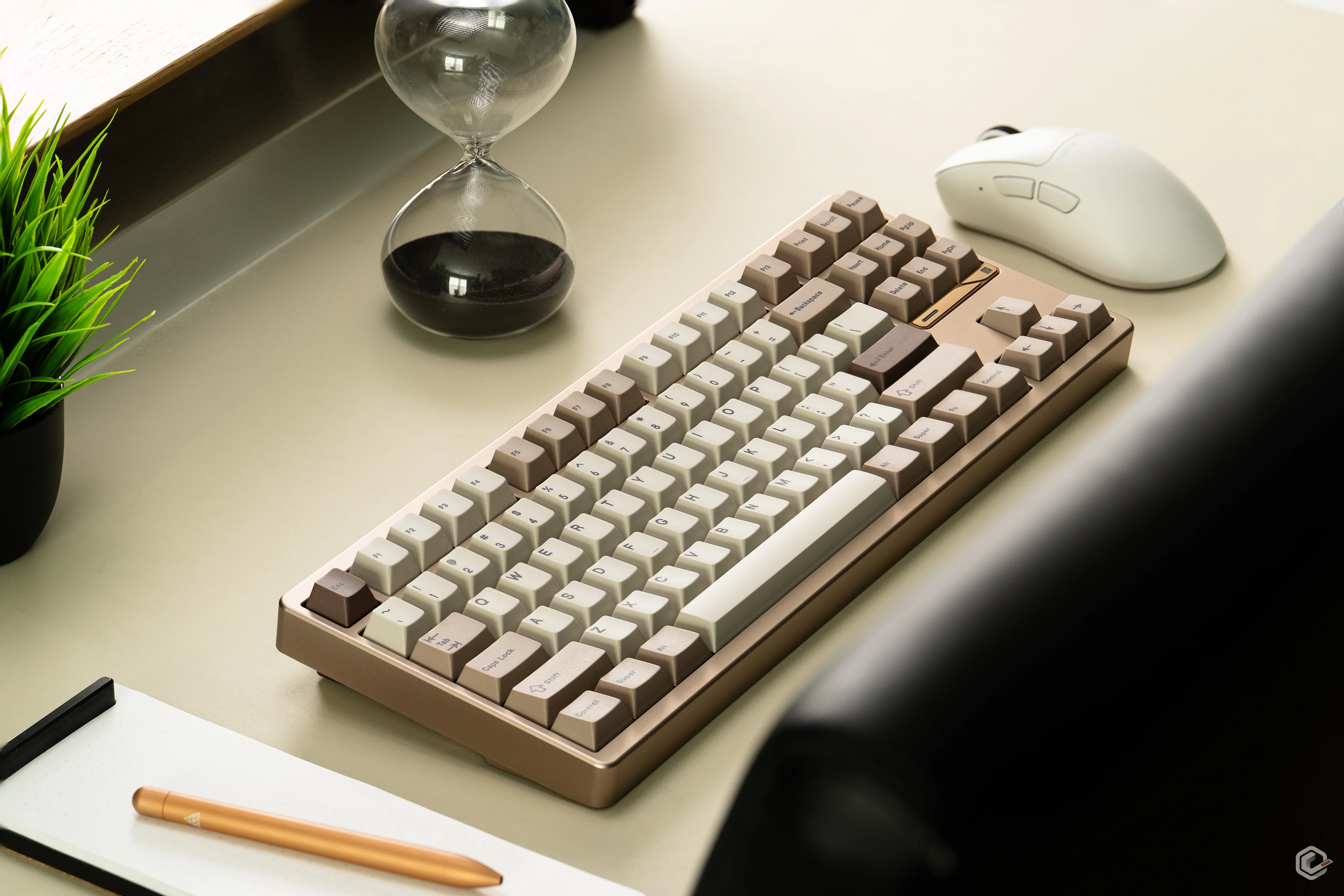

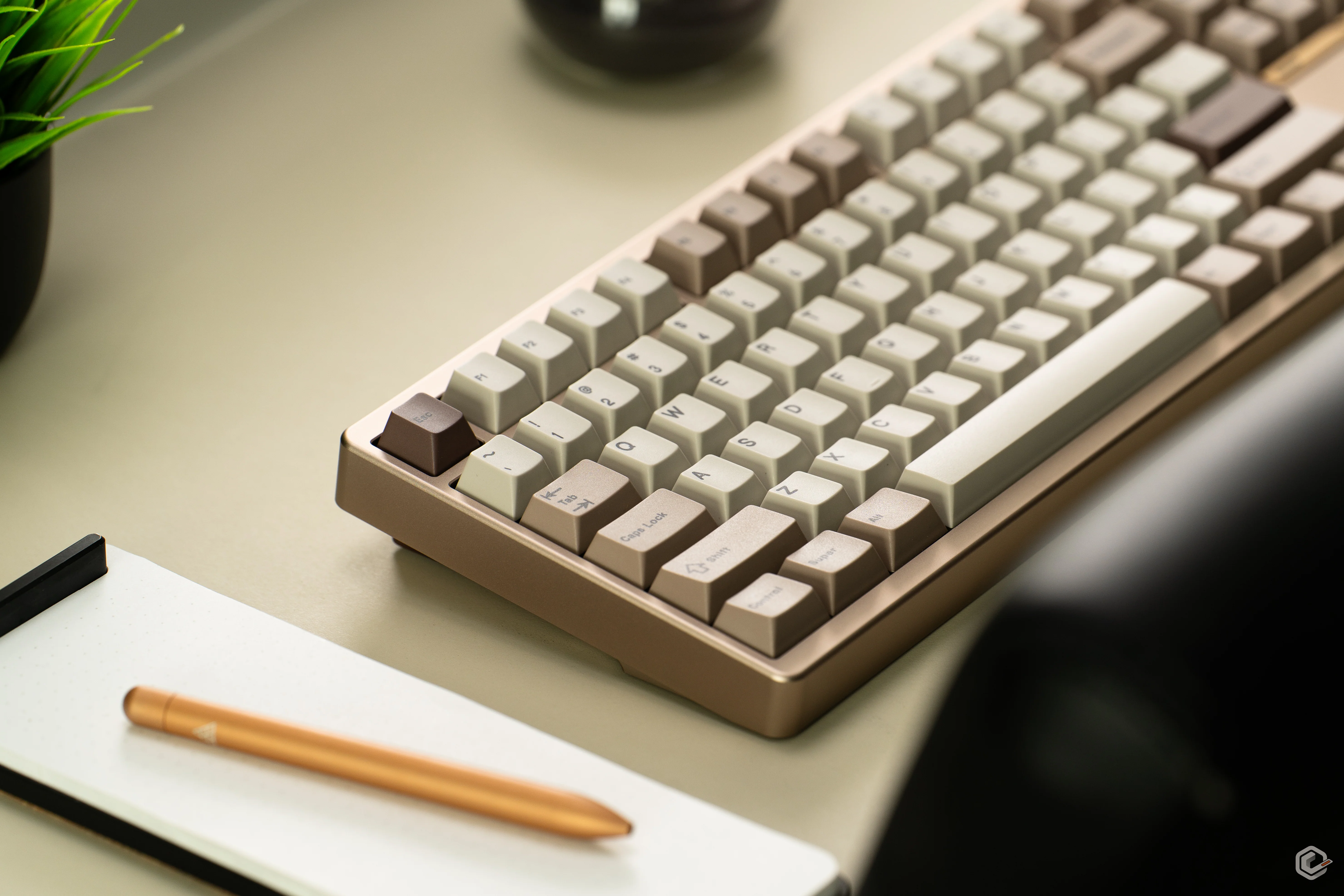

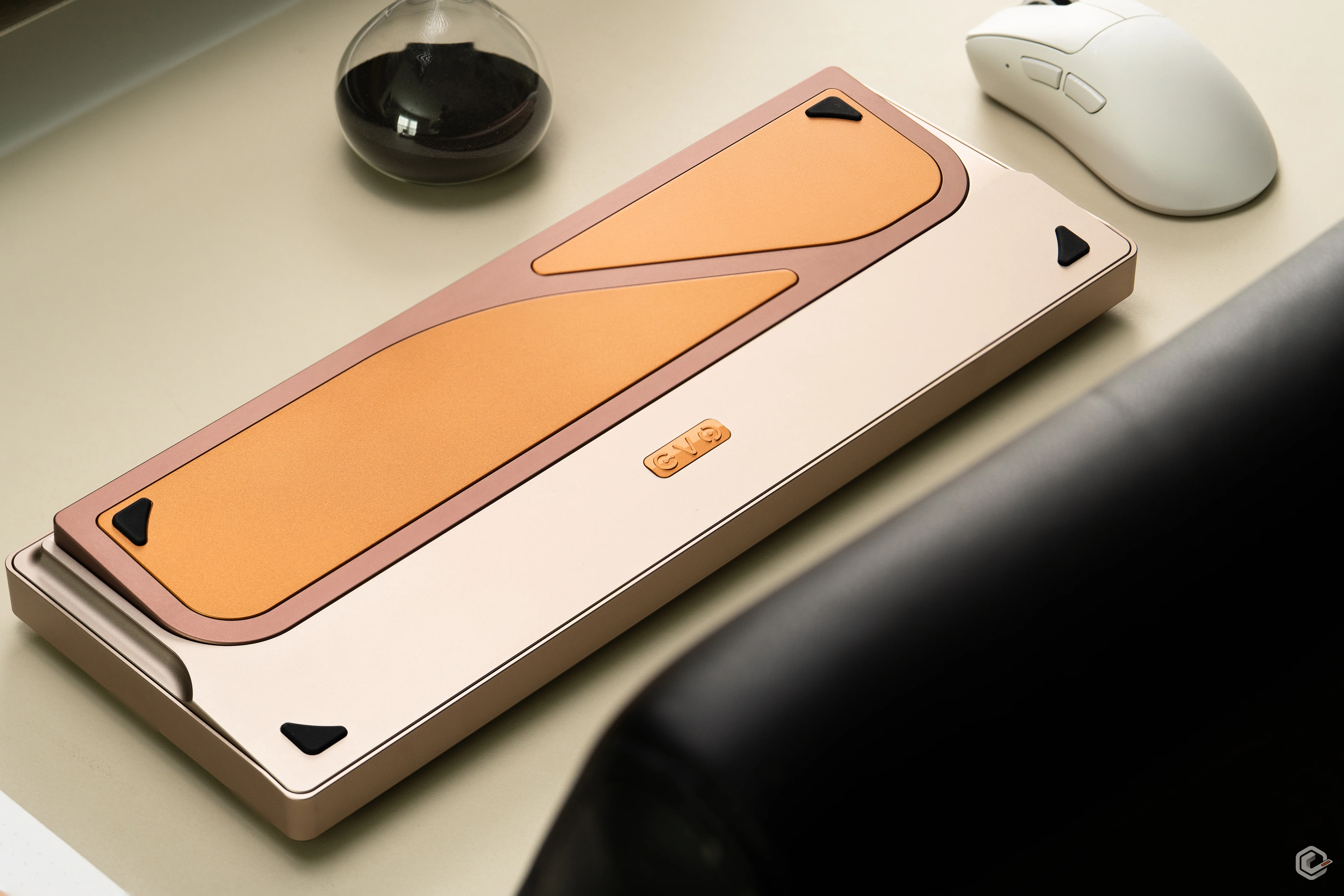

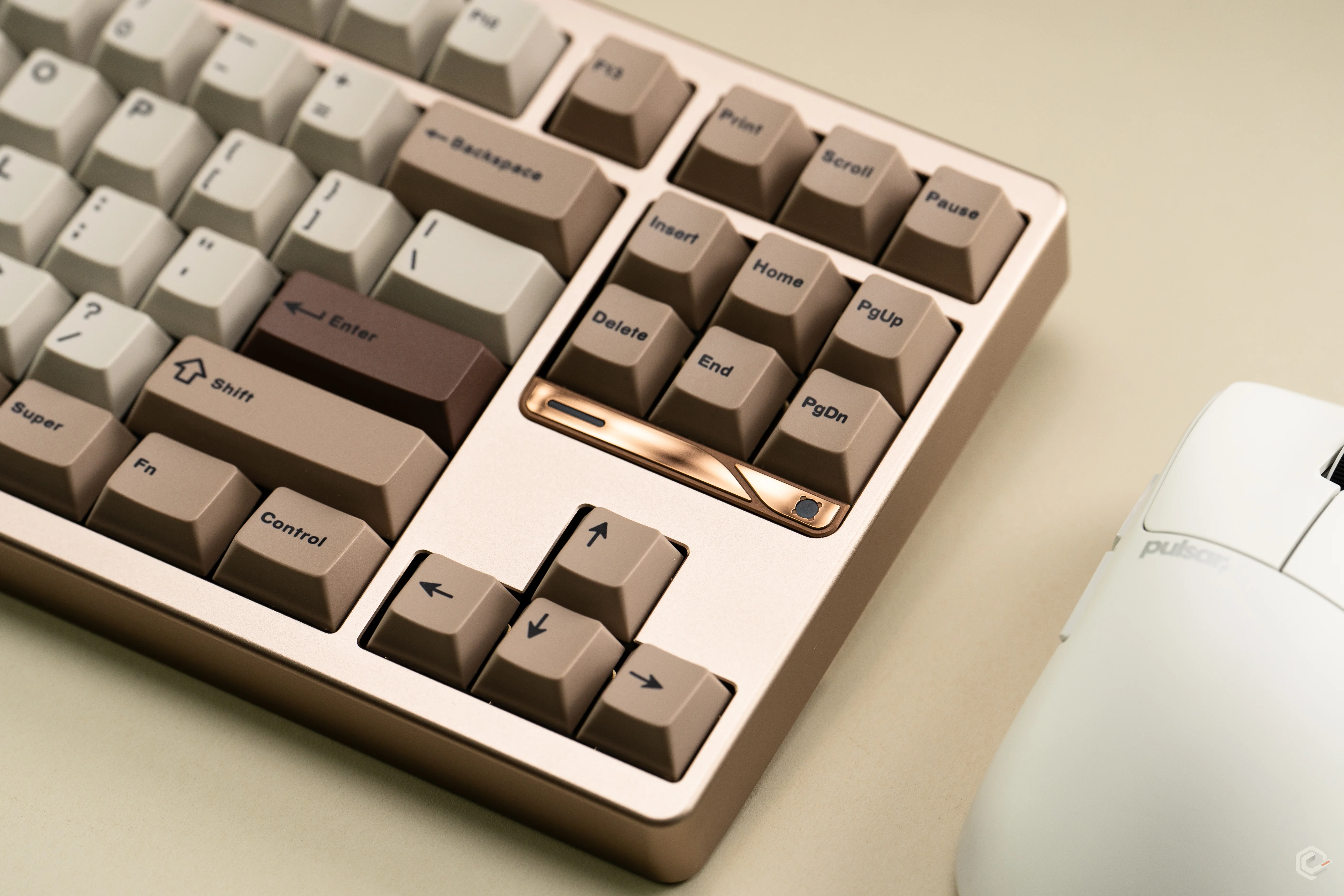

Ticktype Evo80 Keyboard Instock

QC Standard: Click to view

Keyboard Specifications:

• 80% F13 TKL Layout (Pre-built)
• Leaf Mount Structure with screw-less Quick Assembly System
• CNC 6063 Aluminum Body
• 7° typing angle
• PCB : 1.2mm flex cut (hot swappable)
• Accent & South Facing RGB, FR4/PP Plate
• Foam: 5 layers PORON/PET/IXPE plate & two case foam
• Stabilizers Mounting: Plate Mount
• QMK/VIA Support
• Tri-mode connectivity : USB-C / 2.4G / Bluetooth (8000mAh)
• Polling rate: 1000Hz
• Keycaps: Enrong 1.7mm PBT Dye-sublimation

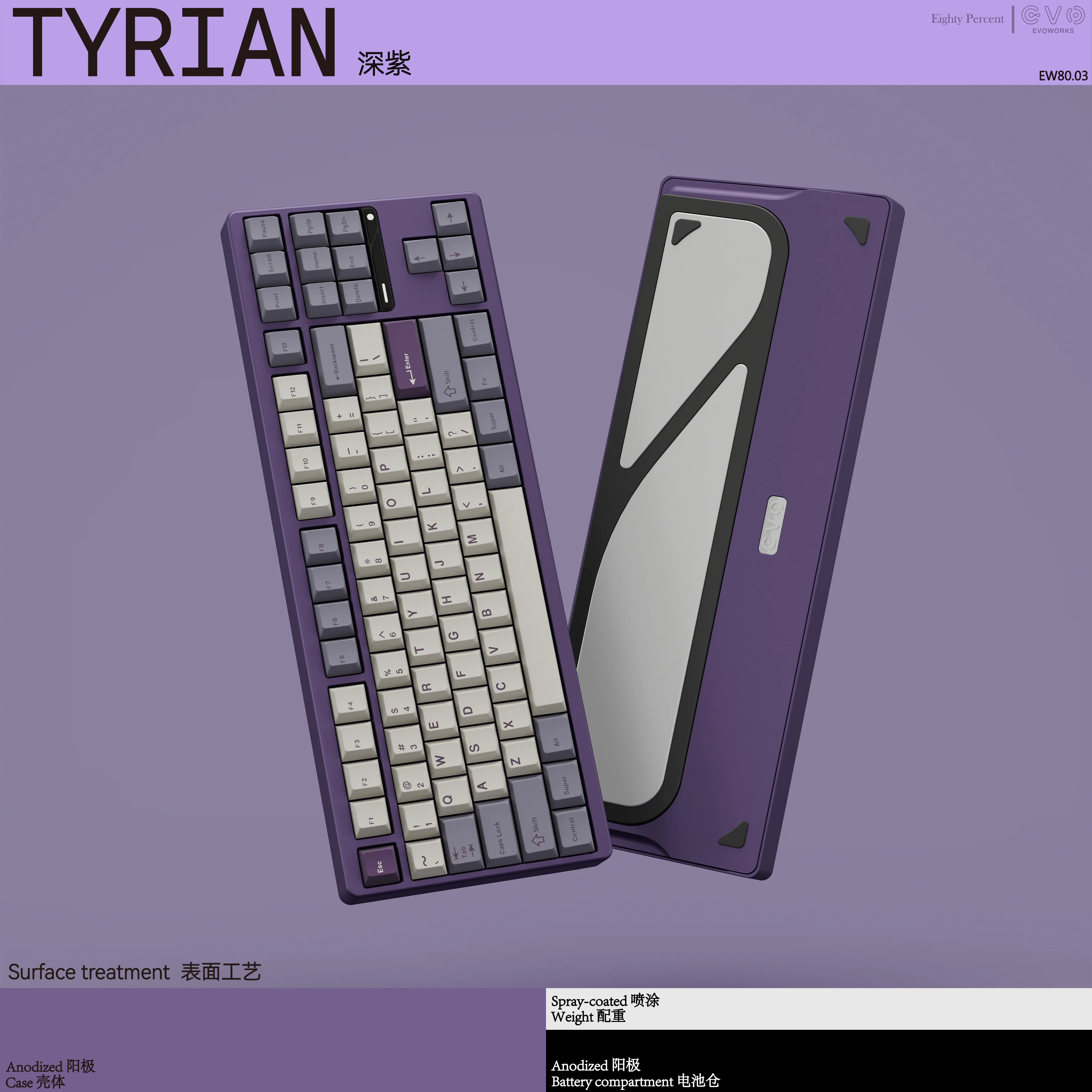

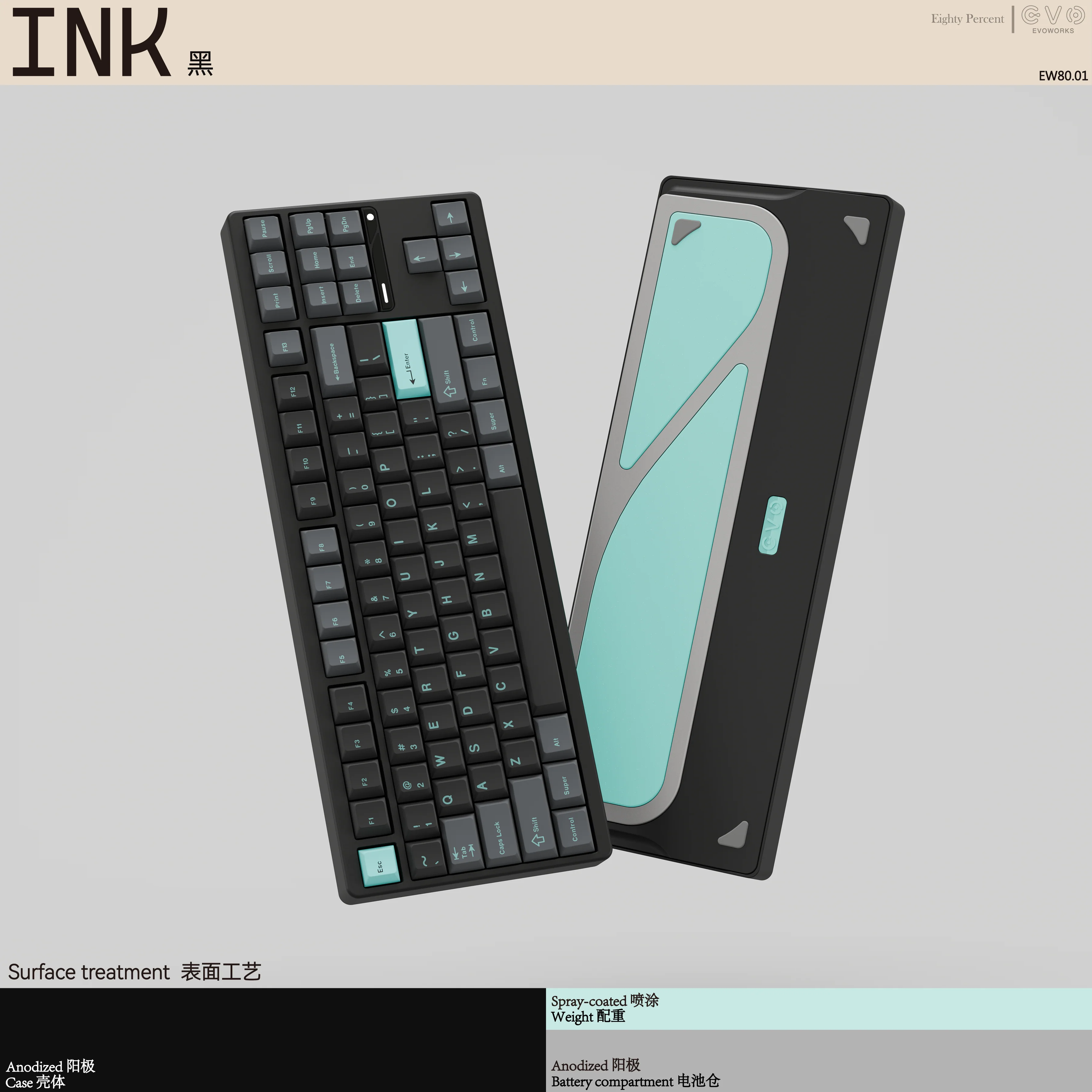

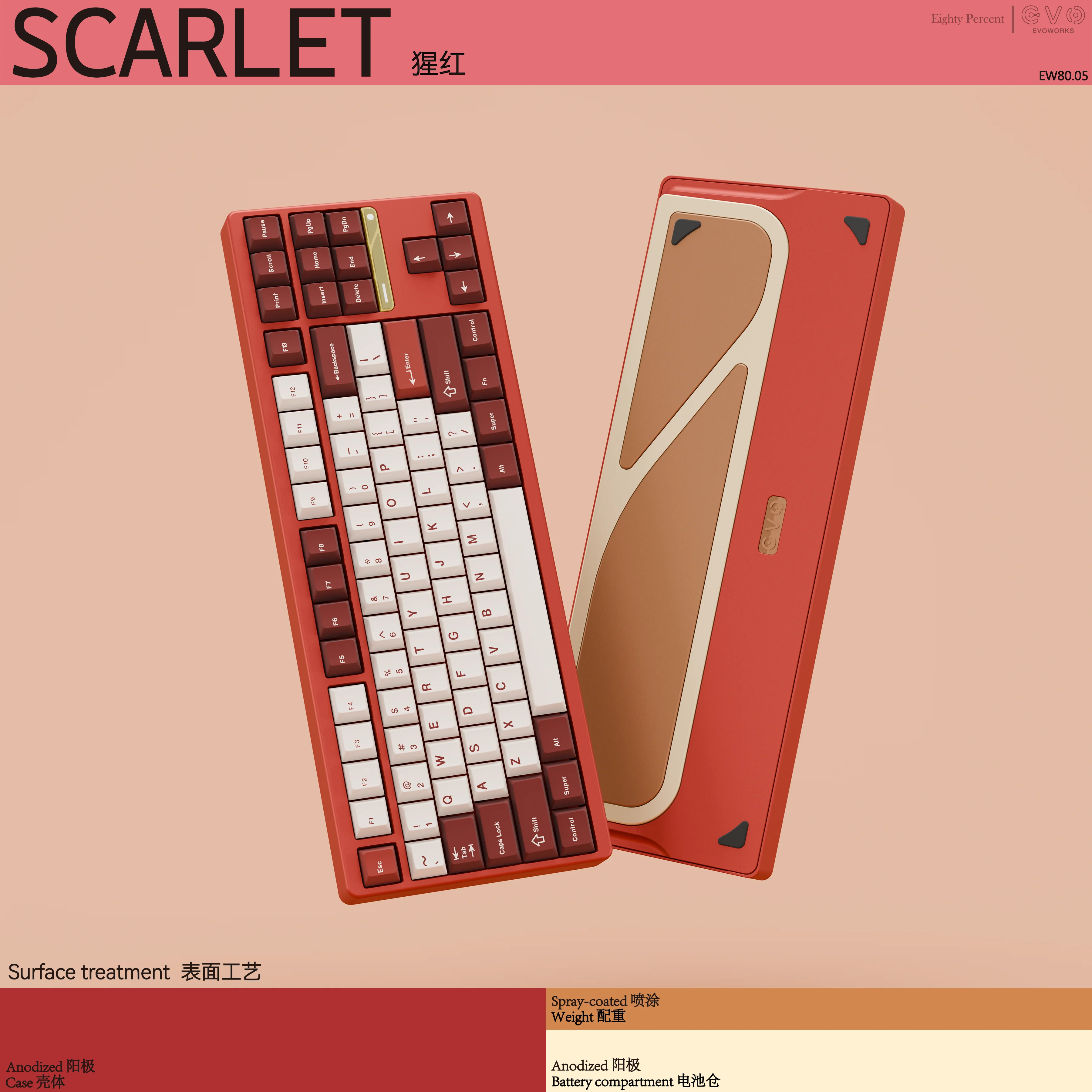

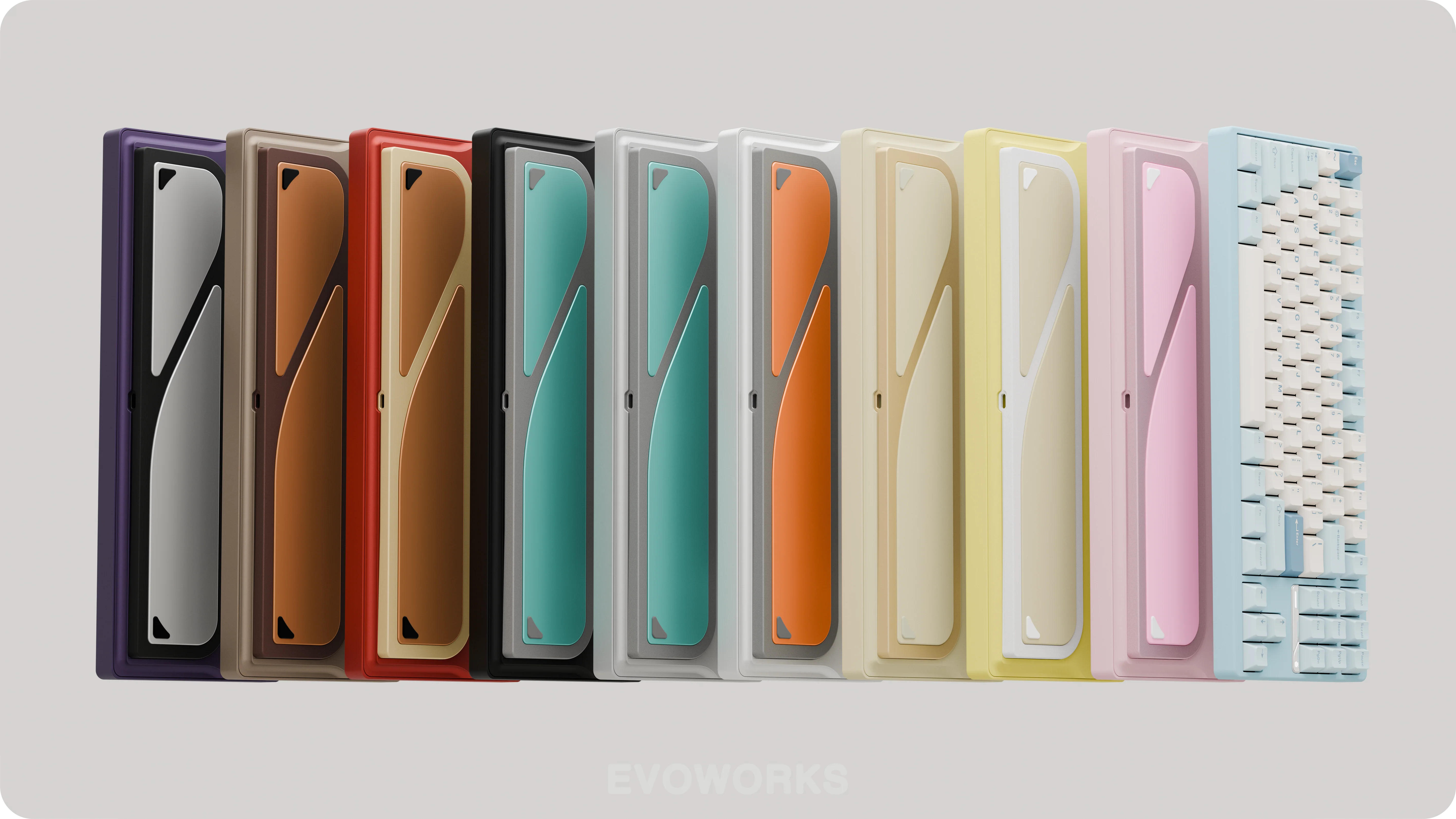

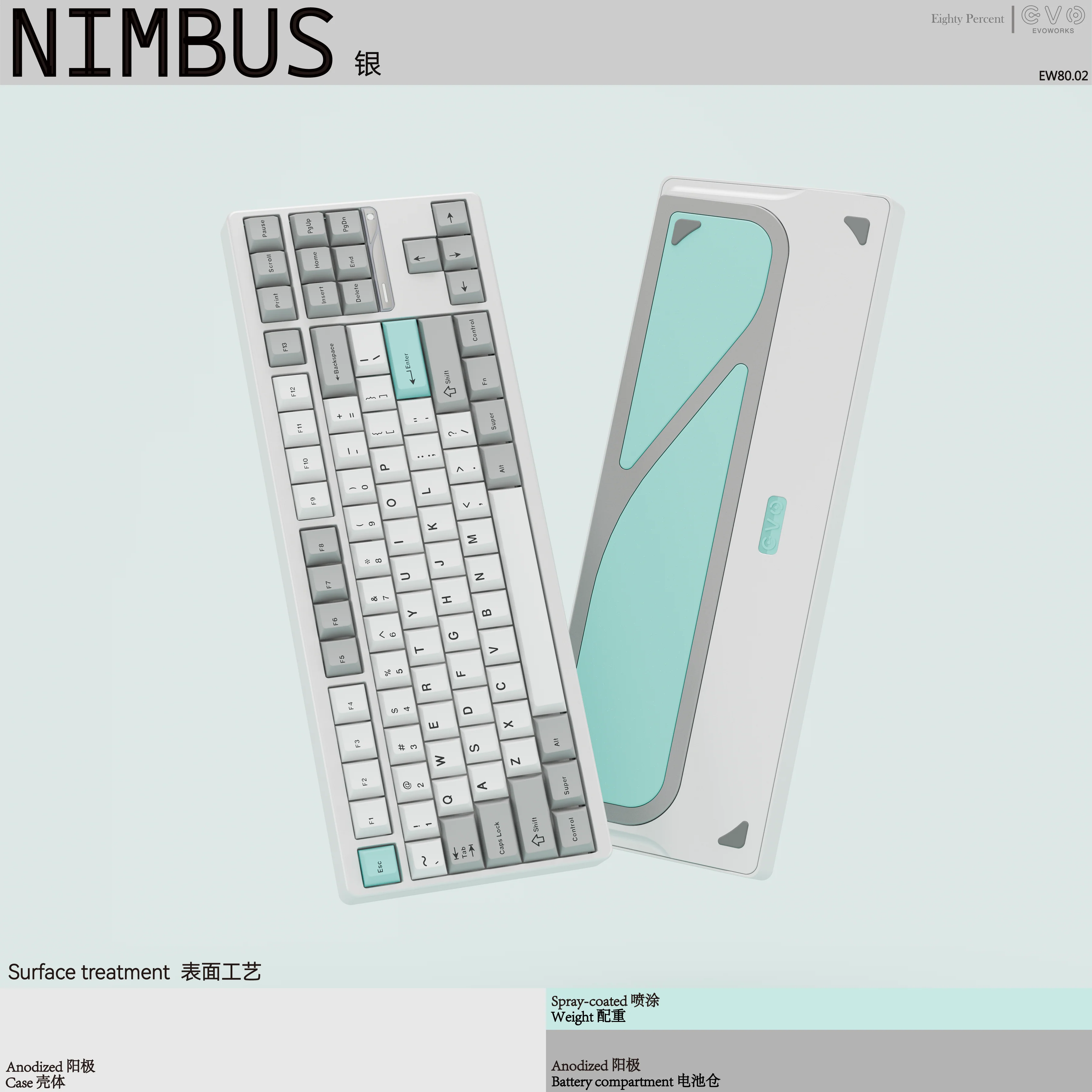

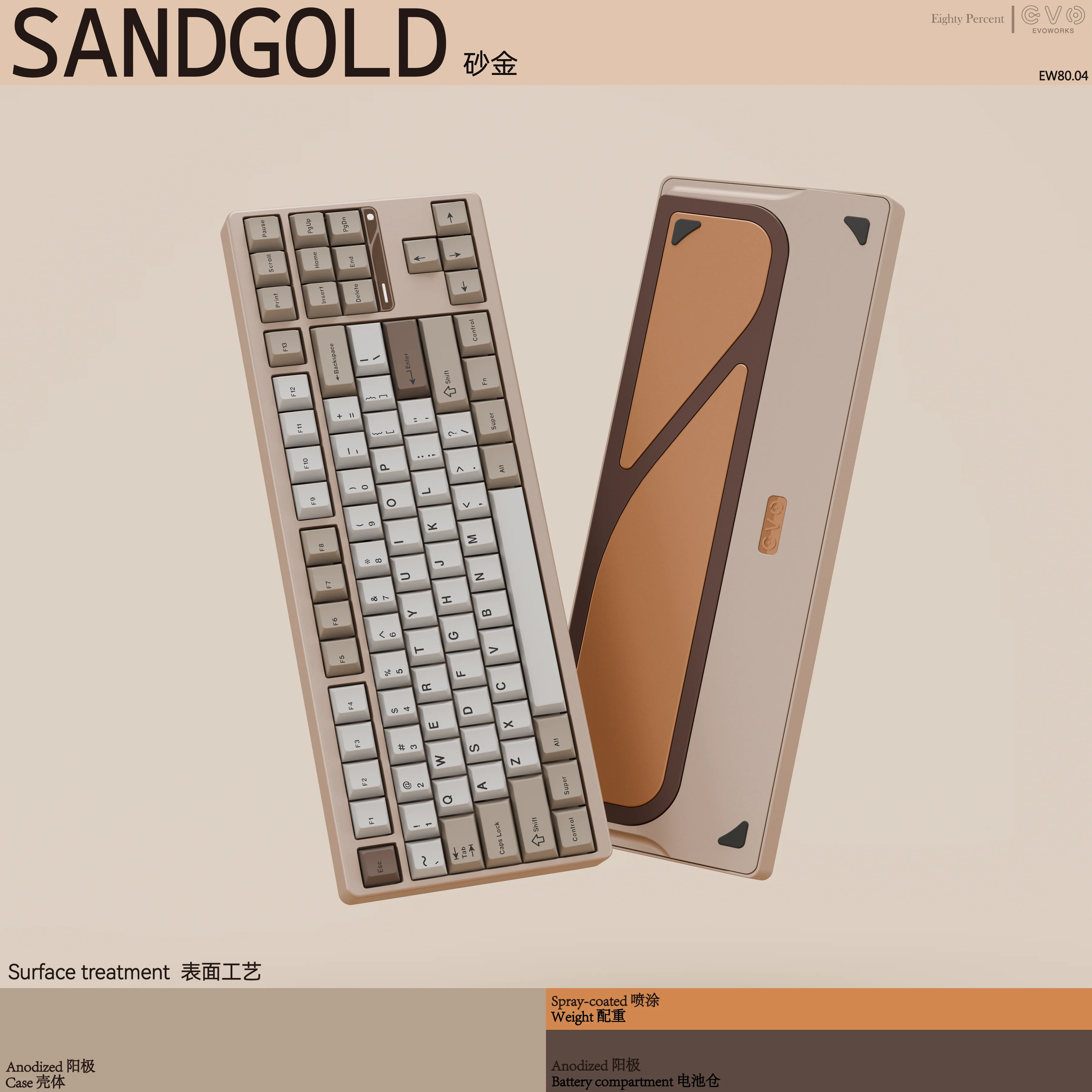

• Color (Anodized) : Tyrian, Sandgold, Scarlet, Ink, Nimbus

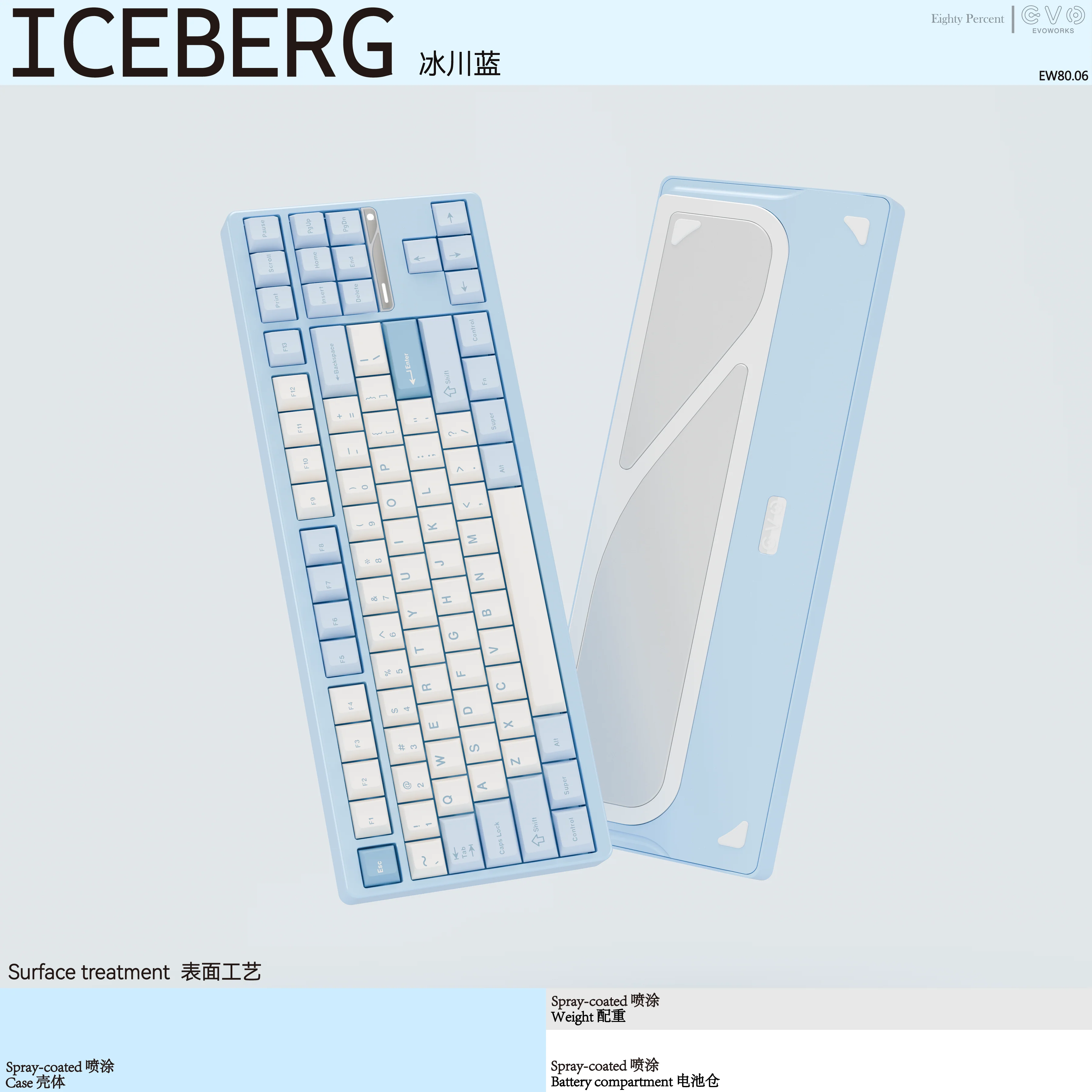

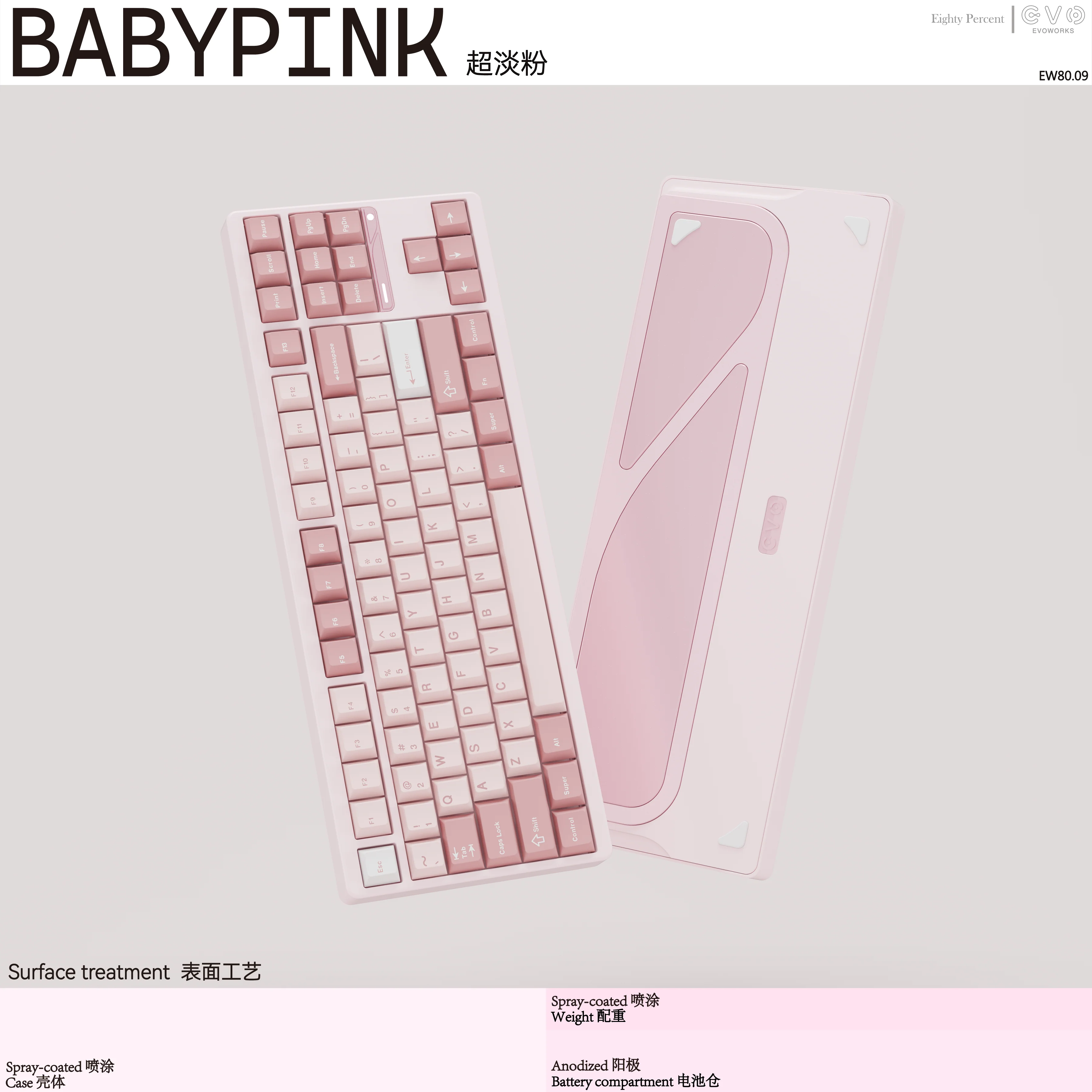

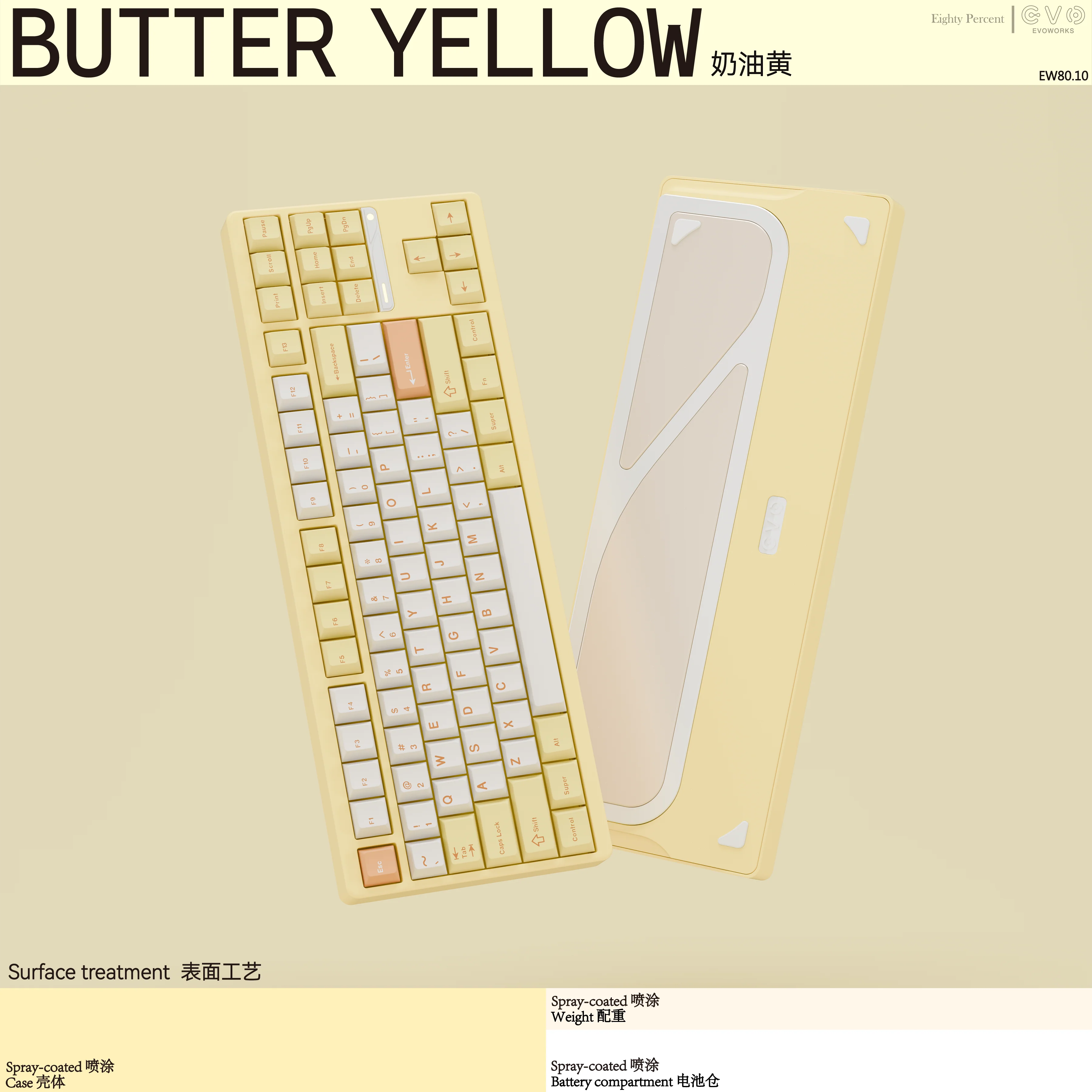

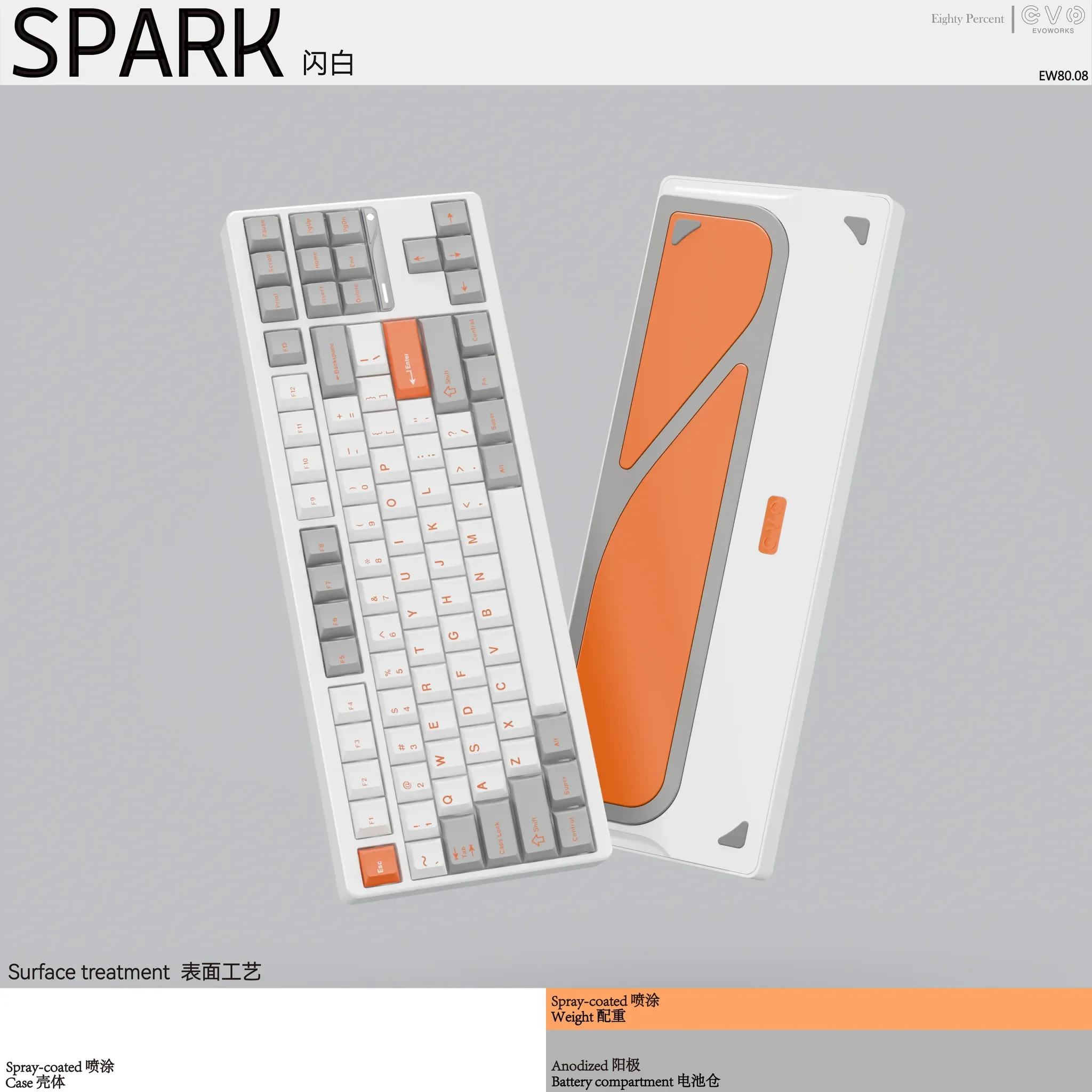

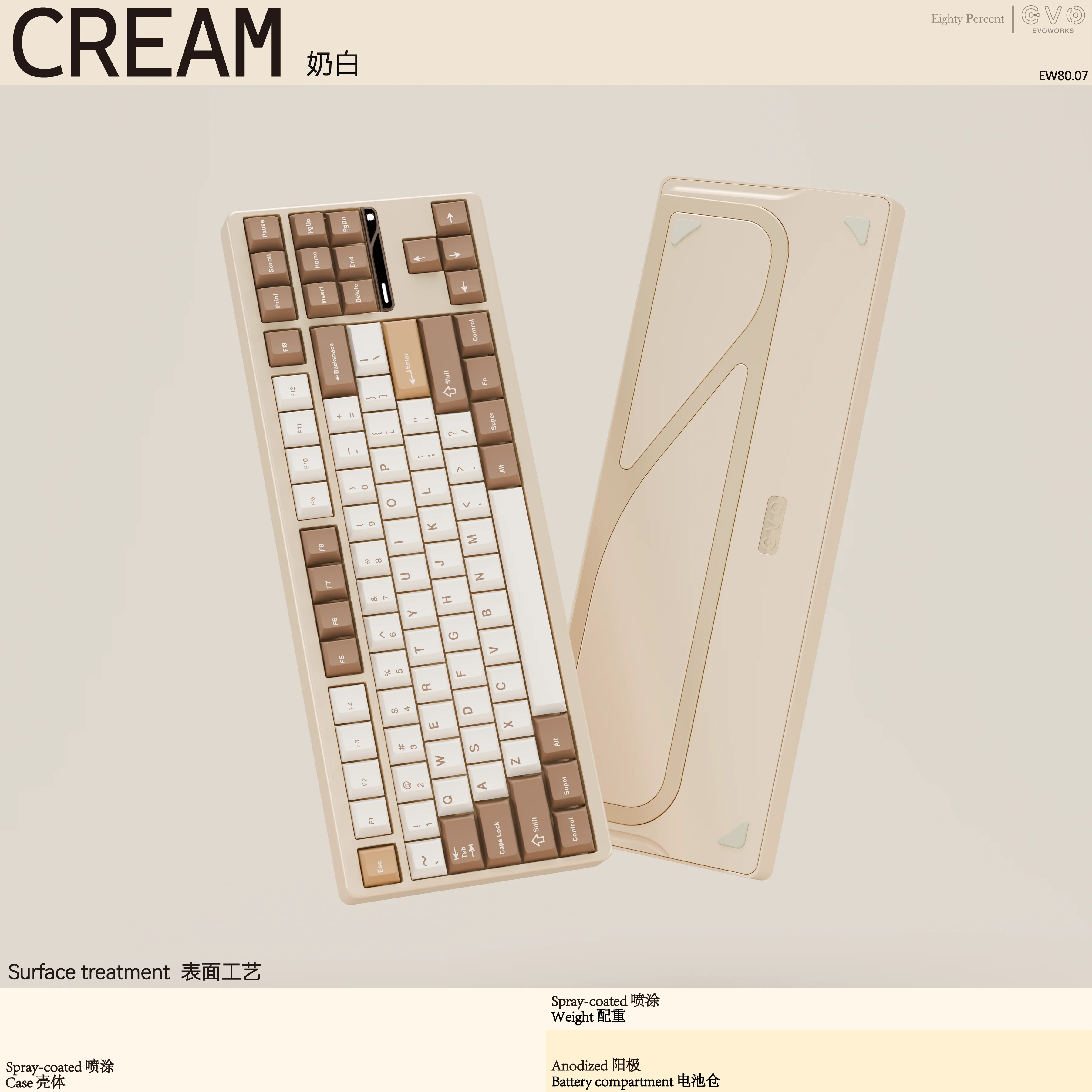

• Color (Spray) : Spark, Cream, Butter Yellow, Baby Pink, Iceberg

Plate/Switch

• Plate/Switch  : FR4/Azure (HMX)
• Type: Linear, 5-pin mx compatible
• Material (Top/Bottom/Stem): PA12/P3/LY2
• Force (trigger/bottom out): 40/45g
• Travel (pre/total): 2.0/3.5mm
• Spring: 22mm single stage

• Plate/Switch: PP/Oat (KeyGeek)
• Type: Linear, 5-pin mx compatible
• Material (Top/Bottom/Stem): PA66/PA6/L4
• Force (trigger/bottom out): 46/45g
• Travel (pre/total) : 2.0/3.60mm
• Spring: 22mm single stage
